WHTTHREDR-11.00E1.50-31.0CTZ36.0-R39_5081614400 (0650777)


Price:
Sale price$293.90
Stock:
Re-stocking soon

Description

SFSE.M14X1,5.HA.16.31,0.IR/IL.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-11.00E1.50-31.0CTZ36.0-R39_5081614400 (0650777)
EDP # 0650777
Workpiece Material(s) All Materials (White)
Weight 8.0 oz 227 g

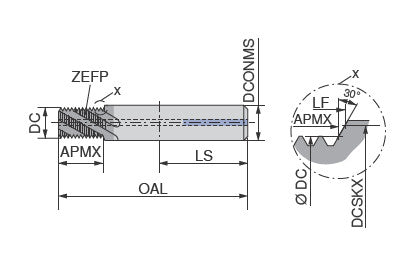

Cutting diameter DC/d1 0.4331 inch 11 mm
Thread M14x1.5
Thread pitch TP/p 0.0591 inch 1.5 mm
Depth of cut maximum APMX/l2 1.2205 inch 31 mm
Shank length LS/l3 min. 1.8898 inch 48 mm
Overall length OAL/l1 3.937 inch 100 mm
Mounting spigot diameter DCONMS/d2 h6 0.6299 inch 16 mm
Countersunk diameter. max DCSKX/d5 0.563 inch 14.3 mm
Functional length LF/l5 1.263 inch 32.08 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
