WHTTHREDR-6.100E1.06-17.0CTZ20.9-K29_5082451600 (0650780)


Price:
Sale price$179.14
Stock:
Re-stocking soon

Description

SFSE.UNF5/16-24.HA.10.17,0.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-6.100E1.06-17.0CTZ20.9-K29_5082451600 (0650780)
EDP # 0650780
Workpiece Material(s) All Materials (White)
Weight 2.5 oz 70 g

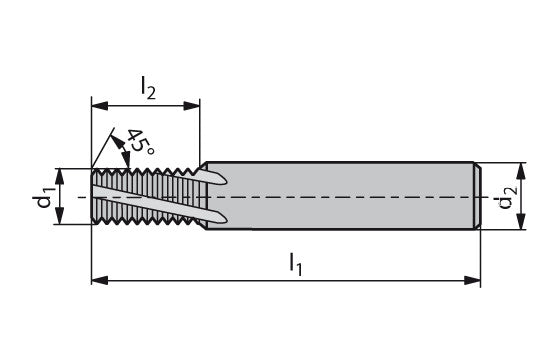

Cutting diameter DC/d1 0.2402 inch 6.1 mm
Thread UNF 5/16-24
Thread pitch TP/p 0.0417 inch 1.058 mm
Threads per inch TPI/p 24
Depth of cut maximum APMX/l2 0.6693 inch 17 mm
Shank length LS/l3 min. 1.5748 inch 40 mm
Overall length OAL/l1 2.9134 inch 74 mm
Mounting spigot diameter DCONMS/d2 h6 0.3937 inch 10 mm
Countersunk diameter. max DCSKX/d5 0.3248 inch 8.25 mm
Functional length LF/l5 0.7106 inch 18.05 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
