Description
SFSE.M12X1,5.HA.14.26,0.IR/IL.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER
Mat No: 5082401400, Article No: 50824014
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
Thread milling cutter.
'E' form tools are multi-point thread mills with a fixed pitch.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

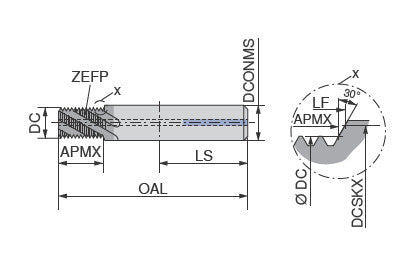

| Properties | ||
|---|---|---|
| Name | WHTTHREDR-10.00E1.50-26.0CTZ30.0-O35_5081612400 (0650783) | |
| EDP # | 0650783 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 5.9 oz | 167 g |
| Cutting diameter DC/d1 | 0.3937 inch | 10 mm |
| Thread | M12x1.5 | |
| Thread pitch TP/p | 0.0591 inch | 1.5 mm |
| Depth of cut maximum APMX/l2 | 1.0236 inch | 26 mm |
| Shank length LS/l3 min. | 1.7717 inch | 45 mm |
| Overall length OAL/l1 | 3.5433 inch | 90 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.5512 inch | 14 mm |
| Countersunk diameter. max DCSKX/d5 | 0.4843 inch | 12.3 mm |
| Functional length LF/l5 | 1.0748 inch | 27.3 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
