WHTTHREDR-4.000E0.80-11.0CTZ15.0-I24_5081105000 (0650784)


Price:
Sale price$135.40
Stock:
Re-stocking soon

Description

SFSE.M5.HA.8.11,0.IR/IL.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-4.000E0.80-11.0CTZ15.0-I24_5081105000 (0650784)
EDP # 0650784
Workpiece Material(s) All Materials (White)
Weight 0.7 oz 21 g

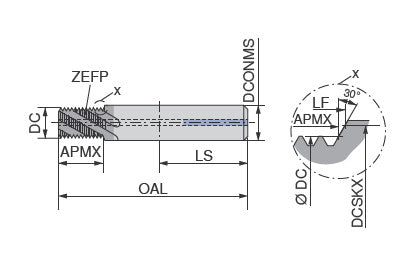

Cutting diameter DC/d1 0.1575 inch 4 mm
Thread M5
Thread pitch TP/p 0.0315 inch 0.8 mm
Depth of cut maximum APMX/l2 0.4331 inch 11 mm
Shank length LS/l3 min. 1.4173 inch 36 mm
Overall length OAL/l1 2.4409 inch 62 mm
Mounting spigot diameter DCONMS/d2 h6 0.315 inch 8 mm
Countersunk diameter. max DCSKX/d5 0.2087 inch 5.3 mm
Functional length LF/l5 0.4394 inch 11.16 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
