WHTTHREDR-16.00E1.81-44.0CTZ48.0-U43_5081801200 (0650787)


Price:
Sale price$463.81
Stock:
Re-stocking soon

Description

SFSE.G1/2-14.HA.20.44,0.IR/IL.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties

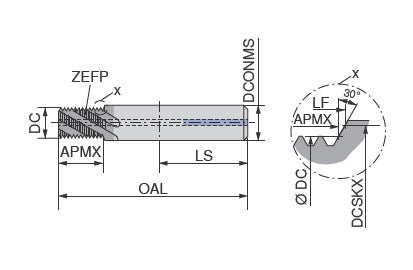

Name WHTTHREDR-16.00E1.81-44.0CTZ48.0-U43_5081801200 (0650787)
EDP # 0650787
Workpiece Material(s) All Materials (White)
Weight 12.4 oz 350 g
Cutting diameter DC/d1 0.6299 inch 16 mm
Thread G1/2-14
Thread pitch TP/p 0.0714 inch 1.814 mm
Threads per inch TPI/p 14
Depth of cut maximum APMX/l2 1.7323 inch 44 mm
Shank length LS/l3 min. 1.9685 inch 50 mm
Overall length OAL/l1 4.3307 inch 110 mm
Mounting spigot diameter DCONMS/d2 h6 0.7874 inch 20 mm
Peripheral effective cutting edge count ZEFP/Z 5

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
