WHTTHREDR-10.10E1.95-26.0CTZ29.9-O35_5082301200 (0650790)


Price:
Sale price$274.26
Stock:
Re-stocking soon

Description

SFSE.UNC1/2-13.HA.14.26,0.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties

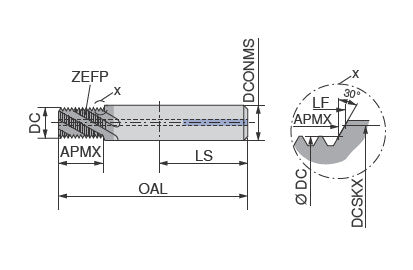

Name WHTTHREDR-10.10E1.95-26.0CTZ29.9-O35_5082301200 (0650790)
EDP # 0650790
Workpiece Material(s) All Materials (White)
Weight 5.3 oz 149 g
Cutting diameter DC/d1 0.3976 inch 10.1 mm
Thread UNC 1/2-13
Thread pitch TP/p 0.0769 inch 1.954 mm
Threads per inch TPI/p 13
Depth of cut maximum APMX/l2 1.0236 inch 26 mm
Shank length LS/l3 min. 1.7717 inch 45 mm
Overall length OAL/l1 3.5433 inch 90 mm
Mounting spigot diameter DCONMS/d2 h6 0.5512 inch 14 mm
Countersunk diameter. max DCSKX/d5 0.5118 inch 13 mm
Functional length LF/l5 1.0894 inch 27.67 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
