WHTTHREDR-8.800E1.81-24.0CTZ29.2-O35_5082371600 (0650791)


Price:
Sale price$274.26
Stock:
Re-stocking soon

Description

SFSE.UNC7/16-14.HA.14.24,0.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-8.800E1.81-24.0CTZ29.2-O35_5082371600 (0650791)
EDP # 0650791
Workpiece Material(s) All Materials (White)
Weight 6.0 oz 170 g

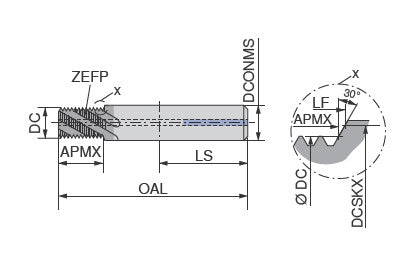

Cutting diameter DC/d1 0.3465 inch 8.8 mm
Thread UNC 7/16-14
Thread pitch TP/p 0.0714 inch 1.814 mm
Threads per inch TPI/p 14
Depth of cut maximum APMX/l2 0.9449 inch 24 mm
Shank length LS/l3 min. 1.7717 inch 45 mm
Overall length OAL/l1 3.5433 inch 90 mm
Mounting spigot diameter DCONMS/d2 h6 0.5512 inch 14 mm
Countersunk diameter. max DCSKX/d5 0.45 inch 11.43 mm
Functional length LF/l5 0.9925 inch 25.21 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
