WHTTHREDR-4.700E0.91-14.0CTZ17.3-I24_5082401400 (0650795)


Price:
Sale price$146.90
Stock:
Re-stocking soon

Description

SFSE.UNF1/4-28.HA.8.14,0.IK TIALN SOLID CARBIDE THREAD MILL WITH CHAMFER

Mat No: 5082401400, Article No: 50824014

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'E' form tools are multi-point thread mills with a fixed pitch.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name WHTTHREDR-4.700E0.91-14.0CTZ17.3-I24_5082401400 (0650795)
EDP # 0650795
Workpiece Material(s) All Materials (White)
Weight 1.3 oz 37 g

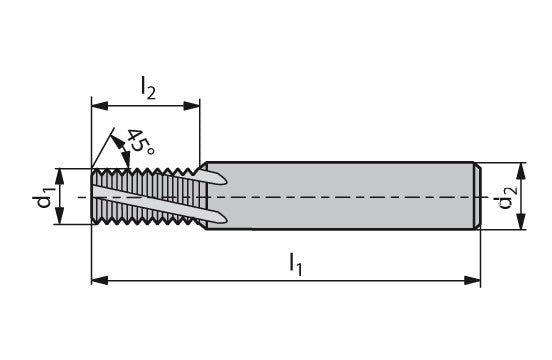

Cutting diameter DC/d1 0.185 inch 4.7 mm
Thread UNF 1/4-28
Thread pitch TP/p 0.0357 inch 0.907 mm
Threads per inch TPI/p 28
Depth of cut maximum APMX/l2 0.5512 inch 14 mm
Shank length LS/l3 min. 1.4173 inch 36 mm
Overall length OAL/l1 2.4409 inch 62 mm
Mounting spigot diameter DCONMS/d2 h6 0.315 inch 8 mm
Countersunk diameter. max DCSKX/d5 0.2618 inch 6.65 mm
Functional length LF/l5 0.6138 inch 15.59 mm
Peripheral effective cutting edge count ZEFP/Z 3

Application & Properties:

Property imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
