CERATIZIT H.M10-M12X1,5.HB.10.6,0.25,0.IK TIALN SOLID CARBIDE THREAD MILLING CUTTER 5084010000 (0650800)


Price:
Sale price$243.14
Stock:
Not in stock - Available to order

Description

H.M10-M12X1,5.HB.10.6,0.25,0.IK TIALN SOLID CARBIDE THREAD MILLING CUTTER Note: left-hand cutting (M04) Profile corrected

Mat No: 5084010000, Article No: 50840100

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT H.M10-M12X1,5.HB.10.6,0.25,0.IK TIALN SOLID CARBIDE THREAD MILLING CUTTER 5084010000 (0650800)
EDP # 0650800
Workpiece Material(s) All Materials (White)
Weight 2.4 oz 67.0 g

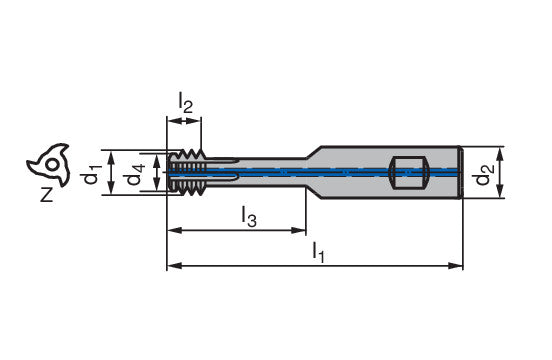

Cutting diameter DC/d1 0.3071 inch 7.8 mm
Thread M10x1.5 - M12x1.5
Thread pitch TP/p 0.0591 inch 1.5 mm
Depth of cut maximum APMX/l2 0.2362 inch 6 mm
Shank length LS/l3 min. 1.5748 inch 40 mm
Head length LH/l3 0.9843 inch 25 mm
Overall length OAL/l1 2.9921 inch 76 mm
Mounting spigot diameter DCONMS/d2 h6 0.3937 inch 10 mm
Peripheral effective cutting edge count ZEFP/Z 4
Cutting diameter drilling part DCD/d4 0.2756 inch 7 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty image
,
