Description
Note that this item has been discontinued and will not be re-stocked.
H.M4X0,7.HB.6.2,8.9,7 TIALN SOLID CARBIDE THREAD MILLING CUTTER Note: left-hand cutting (M04) Profile corrected
Mat No: 5084004000, Article No: 50840040
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

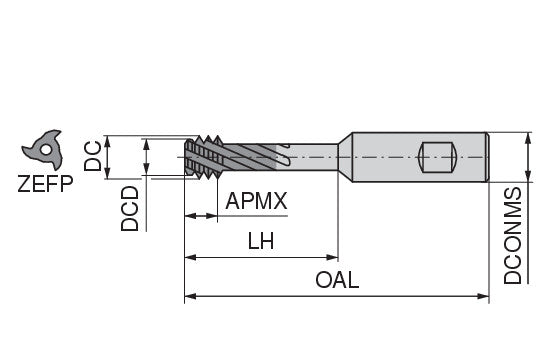

| Properties | ||
|---|---|---|
| Name | CERATIZIT H.M4X0,7.HB.6.2,8.9,7 TIALN SOLID CARBIDE THREAD MILLING CUTTER 5084004000 (0650802) | |
| EDP # | 0650802 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.6 oz | 17.7 g |
| Cutting diameter DC/d1 | 0.1181 inch | 3 mm |
| Thread | M4x0.7 | |
| Thread pitch TP/p | 0.0276 inch | 0.7 mm |
| Depth of cut maximum APMX/l2 | 0.1102 inch | 2.8 mm |
| Shank length LS/l3 min. | 1.4173 inch | 36 mm |
| Head length LH/l3 | 0.3701 inch | 9.4 mm |
| Overall length OAL/l1 | 2.0079 inch | 51 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.2362 inch | 6 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
| Cutting diameter drilling part DCD/d4 | 0.1024 inch | 2.6 mm |
Application & Properties:
Suitable Materials:
