CERATIZIT N.GS.3,0.30°/0,5°.Z4.HA.20 TI1000 SOLID CARBIDE DIE SINKING CUTTER 5229100300 (0650817)


Price:
Sale price$123.08
Stock:
Not in stock - Available to order

Description

N.GS.3,0.30°/0,5°.Z4.HA.20 TI1000 SOLID CARBIDE DIE SINKING CUTTER

Mat No: 5229100300, Article No: 52291003

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT N.GS.3,0.30°/0,5°.Z4.HA.20 TI1000 SOLID CARBIDE DIE SINKING CUTTER 5229100300 (0650817)
EDP # 0650817
Workpiece Material(s) All Materials (White)
Weight 0.3 oz 9.7 g

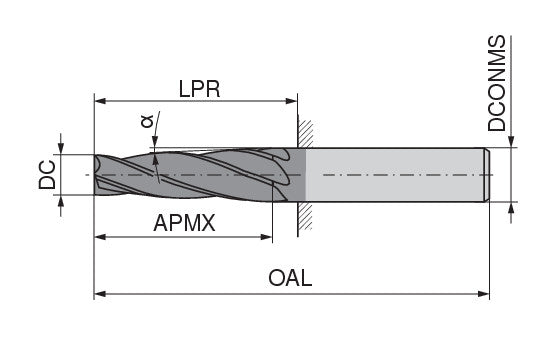

Cutting diameter DC/d1 ±0.1 0.1181 inch 3 mm
Alpha b° 0.5
Depth of cut maximum APMX/l2 0.7874 inch 20 mm
Protruding length LPR/l5 1.2598 inch 32 mm
Overall length OAL/l1 2.3622 inch 60 mm
Mounting spigot diameter DCONMS/d2 h6 0.1575 inch 4 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
,
