BLUCHIRPR-2.500W20.0-20.0CTZ32.0-C23_5229110200 (0650855)


Price:
Sale price$104.10
Stock:
Re-stocking soon

Description

N.GS.2,5.30°/1,0°.Z4.HA.20 TI1000 SOLID CARBIDE DIE SINKING CUTTER

Mat No: 5229160700, Article No: 52291607

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Thread milling cutter.

'W' form tools are tapered-flank, flat faced endmills.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUCHIRPR-2.500W20.0-20.0CTZ32.0-C23_5229110200 (0650855)
EDP # 0650855
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black)
Weight 0.3 oz 9 g

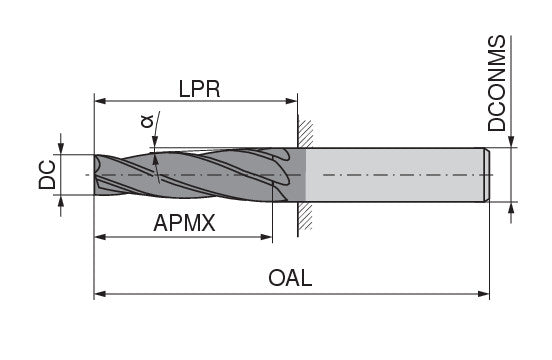

Cutting diameter DC/d1 ±0.1 0.0984 inch 2.5 mm
Alpha b° 1
Depth of cut maximum APMX/l2 0.7874 inch 20 mm
Protruding length LPR/l5 1.2598 inch 32 mm
Overall length OAL/l1 2.3622 inch 60 mm
Mounting spigot diameter DCONMS/d2 h6 0.1575 inch 4 mm
Peripheral effective cutting edge count ZEFP/Z 4

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
