Description
N.GS.3,0.30/4,0.Z4.HB.20 TI1000 SOLID CARBIDE DIE SINKING CUTTER
Mat No: 5229160200, Article No: 52291602
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
Thread milling cutter.
W form tools are tapered-flank,flat faced endmills.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | BLUCHIRPR-3.000W20.0-999.CTZ26.0-F25_5229160200 (0650872) | |
| EDP # | 0650872 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) | |
| Weight | 0.8 oz | 22 g |

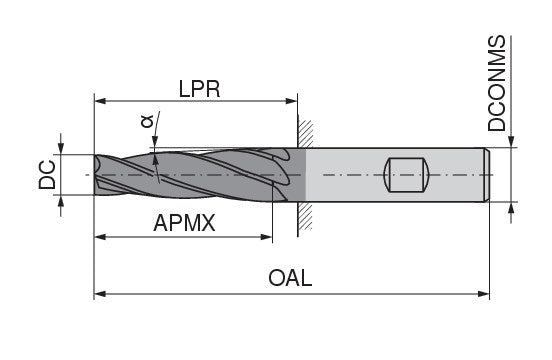

| Cutting diameter DC/d1 0.1 | 0.1181 inch | 3 mm |
| Alpha b | 4 | |
| Depth of cut maximum APMX/l2 | 0.7874 inch | 20 mm |
| Protruding length LPR/l5 | 1.0236 inch | 26 mm |
| Overall length OAL/l1 | 2.5591 inch | 65 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.2362 inch | 6 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
