Description
N.GS.4,0.30/0,5.Z4.HA.20 TI1000 SOLID CARBIDE DIE SINKING CUTTER
Mat No: 5229100400, Article No: 52291004
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
Thread milling cutter.
W form tools are tapered-flank,flat faced endmills.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | BLUCHIRPR-4.000W20.0-20.0CTZ32.0-E23_5229100400 (0650892) | |
| EDP # | 0650892 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) | |
| Weight | 0.5 oz | 15 g |

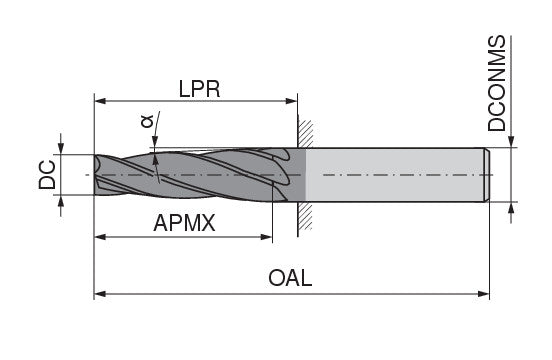

| Cutting diameter DC/d1 0.1 | 0.1575 inch | 4 mm |
| Alpha b | 0.5 | |
| Depth of cut maximum APMX/l2 | 0.7874 inch | 20 mm |
| Protruding length LPR/l5 | 1.2598 inch | 32 mm |
| Overall length OAL/l1 | 2.3622 inch | 60 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.1969 inch | 5 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
