CERATIZIT N.GS.12,0.30°/2,0°.Z6.HB.50 TI1000 SOLID CARBIDE DIE SINKING CUTTER 5229131300 (0650900)


Price:
Sale price$264.45
Stock:
Not in stock - Available to order

Description

N.GS.12,0.30°/2,0°.Z6.HB.50 TI1000 SOLID CARBIDE DIE SINKING CUTTER

Mat No: 5229131300, Article No: 52291313

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT N.GS.12,0.30°/2,0°.Z6.HB.50 TI1000 SOLID CARBIDE DIE SINKING CUTTER 5229131300 (0650900)
EDP # 0650900
Workpiece Material(s) All Materials (White)
Weight 8.6 oz 243.6 g

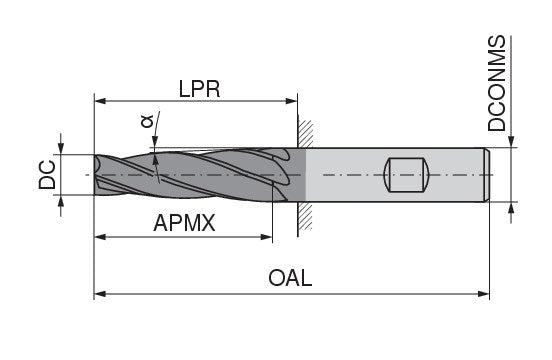

Cutting diameter DC/d1 ±0.1 0.4724 inch 12 mm
Alpha b° 2
Depth of cut maximum APMX/l2 1.9685 inch 50 mm
Protruding length LPR/l5 2.2047 inch 56 mm
Overall length OAL/l1 4.3307 inch 110 mm
Mounting spigot diameter DCONMS/d2 h6 0.6299 inch 16 mm
Peripheral effective cutting edge count ZEFP/Z 6

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image
,
