CERATIZIT WTX-MINI.1,8.R.12D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL 1077901800 (0650947)


Price:
Sale price$191.18
Stock:
Sold out

Description

WTX-MINI.1,8.R.12D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL WTX flute geometry guarantees optimum swarf control and chip evacuation all diameters with standard shank 3 mm

Mat No: 1077901800, Article No: 10779018

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT WTX-MINI.1,8.R.12D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL 1077901800 (0650947)
EDP # 0650947
Workpiece Material(s) All Materials (White)
Weight 0.2 oz 6.3 g

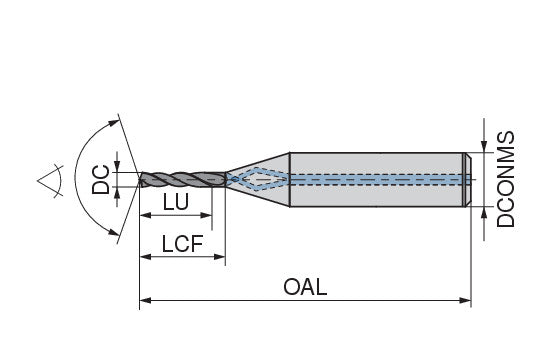

Cutting diameter DC/d1 +0.004 0.0709 inch 1.8 mm
Overall length OAL/l1 2.6772 inch 68 mm
Length chip flute LCF/l2 1.1811 inch 30 mm
Mounting spigot diameter DCONMS/d2 -0.002/-0.005 0.1181 inch 3 mm
Shank length LS/l4 1.4173 inch 36 mm
Usable length LU/l3 0.9843 inch 25 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty image
,
