BLUPECKER-1.900D25.0-25.0CTZ32.0-A26_1077901900 (0650948)


Price:
Sale price$155.84
Stock:
Re-stocking soon

Description

WTX-MINI.1,9.R.12D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL WTX flute geometry guarantees optimum swarf control and chip evacuation all diameters with standard shank 3 mm

Mat No: 1077802500, Article No: 10778025

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Mini drill.

'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUPECKER-1.900D25.0-25.0CTZ32.0-A26_1077901900 (0650948)
EDP # 0650948
Workpiece Material(s) Steel (Blue) Cast Iron (Red) Aluminum (Green)
Weight 0.3 oz 7 g

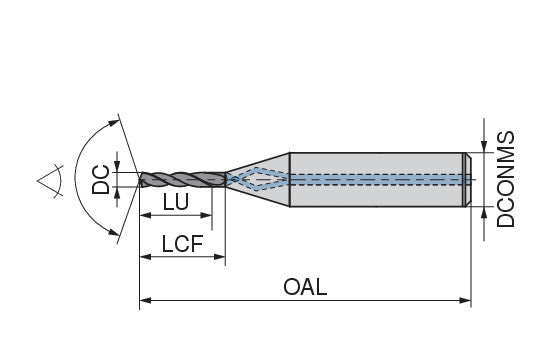

Cutting diameter DC/d1 +0.004 0.0748 inch 1.9 mm
Overall length OAL/l1 2.6772 inch 68 mm
Length chip flute LCF/l2 1.1811 inch 30 mm
Mounting spigot diameter DCONMS/d2 -0.002/-0.005 0.1181 inch 3 mm
Shank length LS/l4 1.4173 inch 36 mm
Usable length LU/l3 0.9843 inch 25 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty image
