Ceratizit WTX-MINI.2,3.R.12D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL 1077902300 (0650952)


Price:
Sale price$195.22
Stock:
Not in stock - Available to order

Description

WTX-MINI.2,3.R.12D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL WTX flute geometry guarantees optimum swarf control and chip evacuation all diameters with standard shank 3 mm

Mat No: 1077902300, Article No: 10779023

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Solid Carbide Twist Drill

'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit WTX-MINI.2,3.R.12D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL 1077902300 (0650952)
EDP # 0650952
Workpiece Material(s) Steel (Blue) Cast Iron (Red) Aluminum (Green)
Weight 0.2 oz 6 g

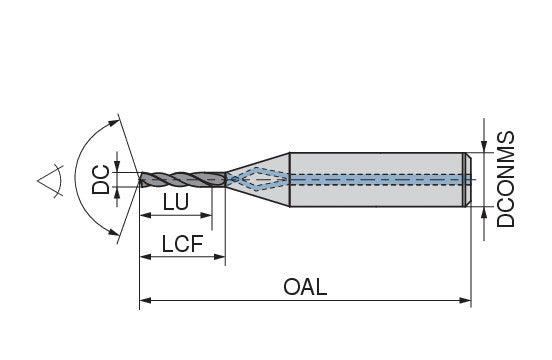

Cutting diameter DC/d1 +0.004 0.0906 inch 2.3 mm
Overall length OAL/l1 2.9134 inch 74 mm
Length chip flute LCF/l2 1.4961 inch 38 mm
Mounting spigot diameter DCONMS/d2 -0.002/-0.005 0.1181 inch 3 mm
Shank length LS/l4 1.378 inch 35 mm
Usable length LU/l3 1.2598 inch 32 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty image
