BLUPECKER-1.800D11.0-11.0CTZ18.1-A26_1077501800 (0650955)


Price:
Sale price$131.22
Stock:
Re-stocking soon

Description

WTX-MINI.1,8.R.5D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL WTX flute geometry,  optimises swarf control and chip evacuation all diameters with standard shank 3 mm

Mat No: 1077802500, Article No: 10778025

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Mini drill.

'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUPECKER-1.800D11.0-11.0CTZ18.1-A26_1077501800 (0650955)
EDP # 0650955
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange)
Weight 0.3 oz 7 g

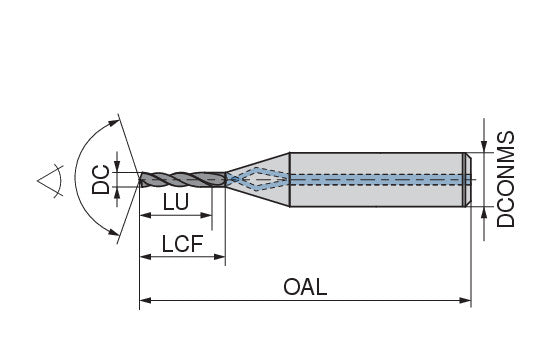

Cutting diameter DC/d1 +0.004 0.0709 inch 1.8 mm
Overall length OAL/l1 2.6772 inch 68 mm
Length chip flute LCF/l2 0.6299 inch 16 mm
Mounting spigot diameter DCONMS/d2 -0.002/-0.005 0.1181 inch 3 mm
Shank length LS/l4 1.9646 inch 49.9 mm
Usable length LU/l3 0.4331 inch 11 mm
Flute count NOF 2

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image
