Ceratizit WTX-MINI.2,8.R.8D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL 1077802800 (0650971)


Price:
Sale price$181.56
Stock:
Not in stock - Available to order

Description

WTX-MINI.2,8.R.8D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL WTX flute geometry,  optimises swarf control and chip evacuation all diameters with standard shank 3 mm

Mat No: 1077802800, Article No: 10778028

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Solid Carbide Twist Drill

'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit WTX-MINI.2,8.R.8D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL 1077802800 (0650971)
EDP # 0650971
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange)
Weight 0.4 oz 10 g

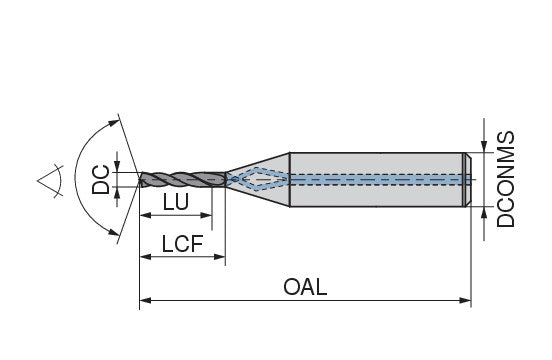

Cutting diameter DC/d1 +0.004 0.1102 inch 2.8 mm
Overall length OAL/l1 3.189 inch 81 mm
Length chip flute LCF/l2 1.2598 inch 32 mm
Mounting spigot diameter DCONMS/d2 -0.002/-0.005 0.1181 inch 3 mm
Shank length LS/l4 1.9173 inch 48.7 mm
Usable length LU/l3 0.9843 inch 25 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image
