BLUPECKER-1.200D8.00-8.00CTZ15.1-A21_1077501200 (0650981)


Price:
Sale price$124.41
Stock:
Re-stocking soon

Description

WTX-MINI.1,2.R.5D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL WTX flute geometry,  optimises swarf control and chip evacuation all diameters with standard shank 3 mm

Mat No: 1077802500, Article No: 10778025

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

Mini drill.

'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUPECKER-1.200D8.00-8.00CTZ15.1-A21_1077501200 (0650981)
EDP # 0650981
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange)
Weight 0.2 oz 6 g

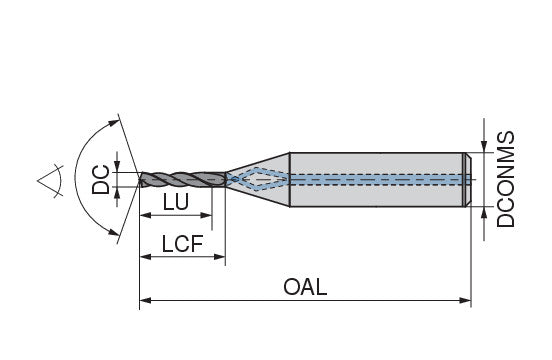

Cutting diameter DC/d1 +0.004 0.0472 inch 1.2 mm
Overall length OAL/l1 2.1654 inch 55 mm
Length chip flute LCF/l2 0.4724 inch 12 mm
Mounting spigot diameter DCONMS/d2 -0.002/-0.005 0.1181 inch 3 mm
Shank length LS/l4 1.5709 inch 39.9 mm
Usable length LU/l3 0.315 inch 8 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image
