CERATIZIT WTX-MINI.2,1.R.8D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL 1077802100 (0650998)


Price:
Sale price$175.97
Stock:
Not in stock - Available to order

Description

WTX-MINI.2,1.R.8D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL WTX flute geometry, optimises swarf control and chip evacuation all diameters with standard shank 3 mm

Mat No: 1077802100, Article No: 10778021

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT WTX-MINI.2,1.R.8D.IK.~HA TI700 SOLID CARBIDE TWIST DRILL 1077802100 (0650998)
EDP # 0650998
Workpiece Material(s) All Materials (White)
Weight 0.3 oz 7.3 g

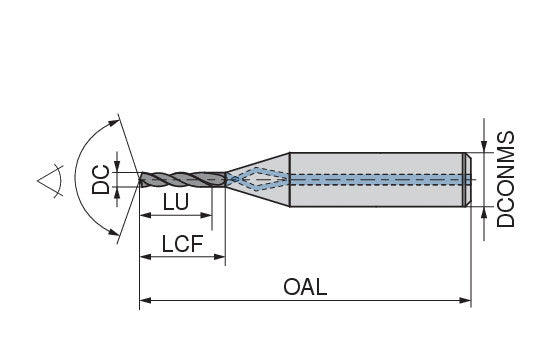

Cutting diameter DC/d1 +0.004 0.0827 inch 2.1 mm
Overall length OAL/l1 2.9134 inch 74 mm
Length chip flute LCF/l2 1.1024 inch 28 mm
Mounting spigot diameter DCONMS/d2 -0.002/-0.005 0.1181 inch 3 mm
Shank length LS/l4 1.748 inch 44.4 mm
Usable length LU/l3 0.8661 inch 22 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty image
,
