Description
WTX-SPEED-UNI.14,2.R.5D.IK.HA DPX14S SOLID CARBIDE TWIST DRILL For Steel and Cast Iron machining Developed for high cutting speeds 2 guidance facets for low friction
Mat No: 1077114200, Article No: 1077114200
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
Solid Carbide Twist Drill
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WTX-SPEED-UNI.14,2.R.5D.IK.HA DPX14S SOLID CARBIDE TWIST DRILL 1077114200 (0651025) | |
| EDP # | 0651025 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) | |
| Weight | 8.3 oz | 235 g |

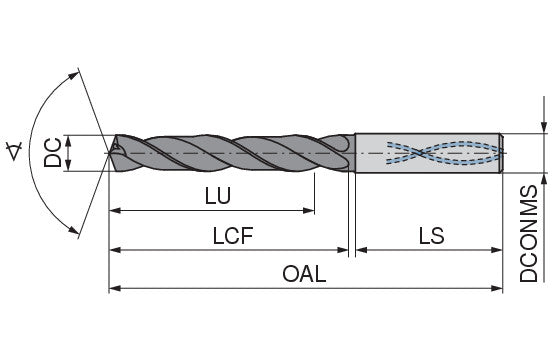

| Cutting diameter DC/d1 h7 | 0.5591 inch | 14.2 mm |
| Overall length OAL/l1 | 5.2362 inch | 133 mm |
| Length chip flute LCF/l2 | 3.2677 inch | 83 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.6299 inch | 16 mm |
| Shank length LS/l4 | 1.8898 inch | 48 mm |
| Usable length LU/l3 | 2.4803 inch | 63 mm |
| Flute count NOF | 2 | |
Application & Properties:
Suitable Materials:
