CERATIZIT WT.2,60.R.3D.DIN1897 TIN HSSE TWIST DRILL 1011002600 (0651420)

Sale price$5.91
Not in stock - Available to order



Mat No: 1011002600, Article No: 10110026

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name CERATIZIT WT.2,60.R.3D.DIN1897 TIN HSSE TWIST DRILL 1011002600 (0651420)
EDP # 0651420
Workpiece Material(s) All Materials (White)
Weight 0.1 oz 2.6 g

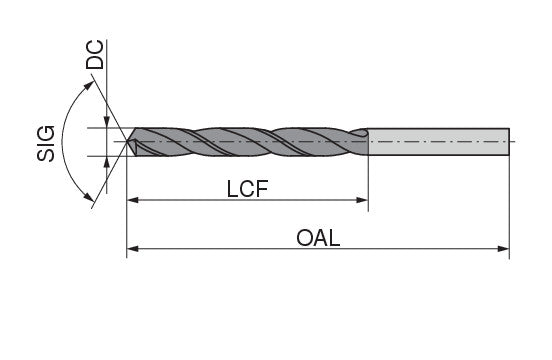

Cutting diameter DC/d1 h8 0.1024 inch 2.6 mm
Overall length OAL/l1 1.6929 inch 43 mm
Length chip flute LCF/l2 0.5512 inch 14 mm
Mounting spigot diameter DCONMS/d2 0.1024 inch 2.6 mm
Shank length LS/l4 1.1417 inch 29 mm
Usable length LU/l3 0.3071 inch 7.8 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
