CERATIZIT WT.2,70.R.3D.DIN1897 TIN HSSE TWIST DRILL 1011002700 (0651421)


Price:
Sale price$6.91
Stock:
Not in stock - Available to order

Description

WT.2,70.R.3D.DIN1897 TIN HSSE TWIST DRILL

Mat No: 1011002700, Article No: 10110027

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT WT.2,70.R.3D.DIN1897 TIN HSSE TWIST DRILL 1011002700 (0651421)
EDP # 0651421
Workpiece Material(s) All Materials (White)
Weight 0.1 oz 1.9 g
Flute count NOF 2

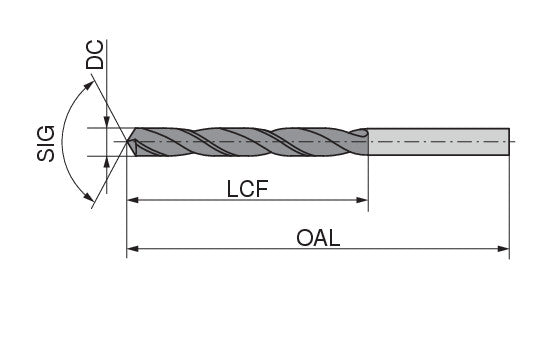

Cutting diameter DC/d1 h8 0.1063 inch 2.7 mm
Overall length OAL/l1 1.811 inch 46 mm
Length chip flute LCF/l2 0.6299 inch 16 mm
Mounting spigot diameter DCONMS/d2 0.1063 inch 2.7 mm
Shank length LS/l4 1.1811 inch 30 mm
Usable length LU/l3 0.3189 inch 8.1 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
,
