Description
VX.8,50.R.3D.~DIN1897/1835A TIN HSSE TWIST DRILL Shank to DIN 1835 A Special point thinning Very good centering behaviour 4 facet Highest Performance
Mat No: 1012208500, Article No: 10122085
Ceratizit Group is an industry leader in solid carbide cutting tool technology.
General purpose drill.
D form indicates that the tool is intended for drilling/plunging,and will not cut laterally.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | BLUPECKER-8.500D25.5-37.0CTZ47.0-K34_1012208500 (0651679) | |
| EDP # | 0651679 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) | |
| Weight | 1.5 oz | 41 g |

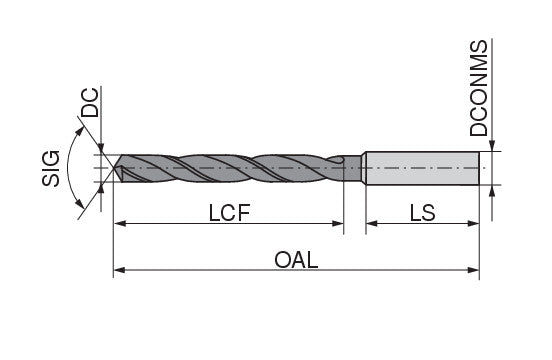

| Cutting diameter DC/d1 h8 | 0.3346 inch | 8.5 mm |
| Overall length OAL/l1 | 3.4252 inch | 87 mm |
| Length chip flute LCF/l2 | 1.4567 inch | 37 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.3937 inch | 10 mm |
| Shank length LS/l4 | 1.5748 inch | 40 mm |
| Usable length LU/l3 | 1.0039 inch | 25.5 mm |
Application & Properties:
Suitable Materials:
