CERATIZIT VX.9,00.R.3D.~DIN1897/1835A TIN HSSE TWIST DRILL 1012209000 (0651681)


Price:
Sale price$31.24
Stock:
Not in stock - Available to order

Description

VX.9,00.R.3D.~DIN1897/1835A TIN HSSE TWIST DRILL Shank to DIN 1835 A Special point thinning Very good centering behaviour 4 facet Highest Performance

Mat No: 1012209000, Article No: 10122090

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT VX.9,00.R.3D.~DIN1897/1835A TIN HSSE TWIST DRILL 1012209000 (0651681)
EDP # 0651681
Workpiece Material(s) All Materials (White)
Weight 1.5 oz 43.7 g

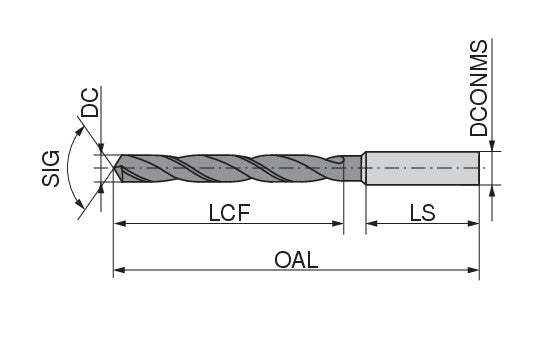

Cutting diameter DC/d1 h8 0.3543 inch 9 mm
Overall length OAL/l1 3.5827 inch 91 mm
Length chip flute LCF/l2 1.5748 inch 40 mm
Mounting spigot diameter DCONMS/d2 h6 0.3937 inch 10 mm
Shank length LS/l4 1.5748 inch 40 mm
Usable length LU/l3 1.063 inch 27 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
,
