BLUPECKER-3.100D9.30-18.0CTZ22.0-C19_1012203100 (0651716)


Price:
Sale price$11.52
Stock:
Re-stocking soon

Description

VX.3,10.R.3D.~DIN1897/1835A TIN HSSE TWIST DRILL Shank to DIN 1835 A Special point thinning Very good centering behaviour 4 facet Highest Performance

Mat No: 1022510000, Article No: 10225100

Ceratizit Group is an industry leader in solid carbide cutting tool technology.

General purpose drill.

'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name BLUPECKER-3.100D9.30-18.0CTZ22.0-C19_1012203100 (0651716)
EDP # 0651716
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black)
Weight 0.2 oz 6 g

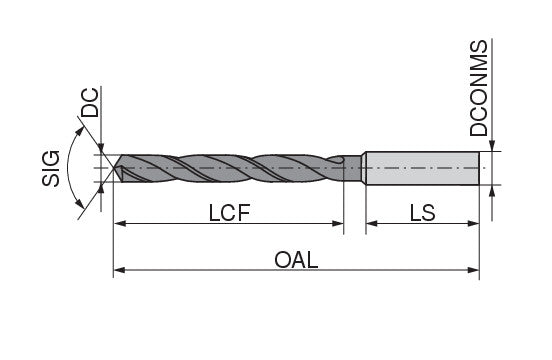

Cutting diameter DC/d1 h8 0.122 inch 3.1 mm
Overall length OAL/l1 1.9685 inch 50 mm
Length chip flute LCF/l2 0.7087 inch 18 mm
Mounting spigot diameter DCONMS/d2 h6 0.1575 inch 4 mm
Shank length LS/l4 1.1024 inch 28 mm
Usable length LU/l3 0.3661 inch 9.3 mm

Application & Properties:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
