Description
WNXI.8,50.R.5D.IK.~DIN338/1835E TIN HSSE TWIST DRILL Relief ground Special point thinning Wide chip flutes Rounded flute edges For long chipping materials up to 1000N/mm 2
Mat No: 1018108500, Article No: 10181085
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT WNXI.8,50.R.5D.IK.~DIN338/1835E TIN HSSE TWIST DRILL 1018108500 (0652271) | |
| EDP # | 0652271 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 1.4 oz | 41.1 g |

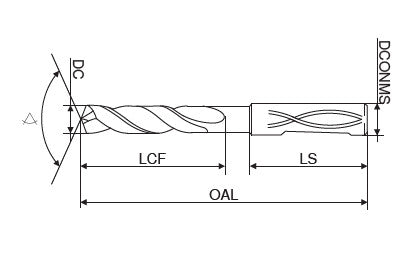

| Cutting diameter DC/d1 h8 | 0.3346 inch | 8.5 mm |
| Overall length OAL/l1 | 4.0551 inch | 103 mm |
| Length chip flute LCF/l2 | 2.4016 inch | 61 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.3937 inch | 10 mm |
| Shank length LS/l4 | 1.6535 inch | 42 mm |
| Usable length LU/l3 | 1.6732 inch | 42.5 mm |
Application & Properties:
Suitable Materials:
