CERATIZIT UNI.8,00.R.3D.DIN1897 TIN HSSE TWIST DRILL 1010708000 (0652288)

Sale price$14.91
Not in stock - Available to order



Mat No: 1010708000, Article No: 10107080

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name CERATIZIT UNI.8,00.R.3D.DIN1897 TIN HSSE TWIST DRILL 1010708000 (0652288)
EDP # 0652288
Workpiece Material(s) All Materials (White)
Weight 1.0 oz 28.4 g

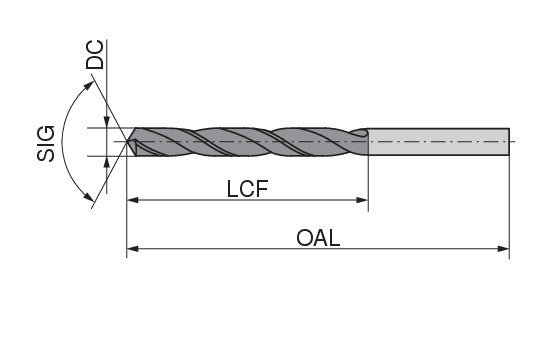

Cutting diameter DC/d1 h8 0.315 inch 8 mm
Overall length OAL/l1 3.1102 inch 79 mm
Length chip flute LCF/l2 1.4567 inch 37 mm
Mounting spigot diameter DCONMS/d2 0.315 inch 8 mm
Shank length LS/l4 1.6535 inch 42 mm
Usable length LU/l3 0.9449 inch 24 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
