CERATIZIT VX.10,90.R.3D.~DIN1897/1835A TIN HSSE TWIST DRILL 1012210900 (0652295)

Sale price$89.01
Not in stock - Available to order


VX.10,90.R.3D.~DIN1897/1835A TIN HSSE TWIST DRILL Shank to DIN 1835 A Special point thinning Very good centering behaviour 4 facet Highest Performance

Mat No: 1012210900, Article No: 10122109

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name CERATIZIT VX.10,90.R.3D.~DIN1897/1835A TIN HSSE TWIST DRILL 1012210900 (0652295)
EDP # 0652295
Workpiece Material(s) All Materials (White)
Weight 2.5 oz 71.4 g

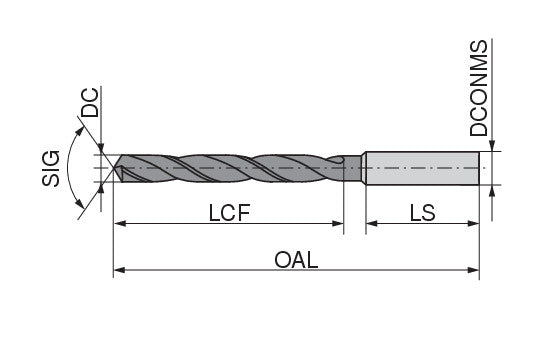

Cutting diameter DC/d1 h8 0.4291 inch 10.9 mm
Overall length OAL/l1 4.0945 inch 104 mm
Length chip flute LCF/l2 1.8504 inch 47 mm
Mounting spigot diameter DCONMS/d2 h6 0.4724 inch 12 mm
Shank length LS/l4 1.7717 inch 45 mm
Usable length LU/l3 1.2874 inch 32.7 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
