CERATIZIT WT.7,05.R.3D.DIN1897 VAP HSSE TWIST DRILL 1010907050 (0652297)

Sale price$26.66
Not in stock - Available to order



Mat No: 1010907050, Article No: 1010907050

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name CERATIZIT WT.7,05.R.3D.DIN1897 VAP HSSE TWIST DRILL 1010907050 (0652297)
EDP # 0652297
Workpiece Material(s) All Materials (White)
Weight 0.7 oz 18.8 g

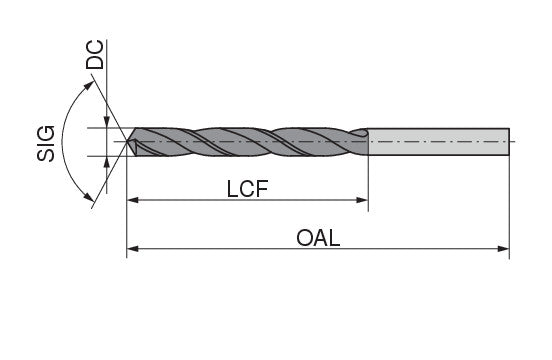

Cutting diameter DC/d1 h8 0.2776 inch 7.05 mm
Overall length OAL/l1 2.9134 inch 74 mm
Length chip flute LCF/l2 1.3386 inch 34 mm
Mounting spigot diameter DCONMS/d2 0.2776 inch 7.05 mm
Shank length LS/l4 1.5748 inch 40 mm
Usable length LU/l3 0.8327 inch 21.15 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
