VX.8,50.R.5D.~DIN338/1835A TIN HSSE TWIST DRILL With shank to DIN 1835 A Special point thinning 4 facet Highest Performance Very good centering behaviour
Mat No: 1012408500, Article No: 10124085
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Name||CERATIZIT VX.8,50.R.5D.~DIN338/1835A TIN HSSE TWIST DRILL 1012408500 (0652311)|
|Workpiece Material(s)||All Materials (White)|
|Weight||1.9 oz||53.5 g|

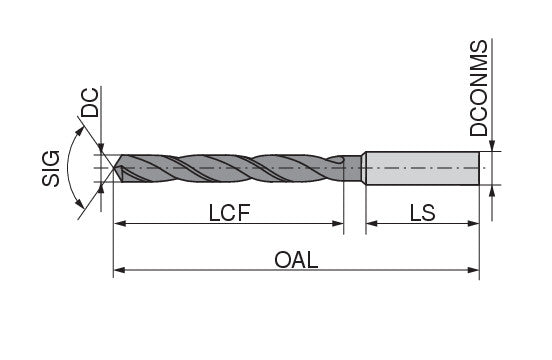

|Cutting diameter DC/d1 h8||0.3346 inch||8.5 mm|
|Overall length OAL/l1||4.9213 inch||125 mm|
|Length chip flute LCF/l2||2.9528 inch||75 mm|
|Mounting spigot diameter DCONMS/d2 h6||0.3937 inch||10 mm|
|Shank length LS/l4||1.5748 inch||40 mm|
|Usable length LU/l3||1.6732 inch||42.5 mm|
Application & Properties:
