CERATIZIT WT.8,90.R.3D.DIN1897 VAP HSSE TWIST DRILL 1010908900 (0652350)

Sale price$29.39
Not in stock - Available to order



Mat No: 1010908900, Article No: 1010908900

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Name CERATIZIT WT.8,90.R.3D.DIN1897 VAP HSSE TWIST DRILL 1010908900 (0652350)
EDP # 0652350
Workpiece Material(s) All Materials (White)
Weight 1.2 oz 34.4 g

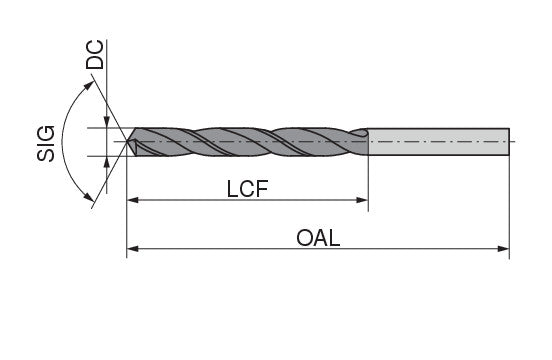

Cutting diameter DC/d1 h8 0.3504 inch 8.9 mm
Overall length OAL/l1 3.3071 inch 84 mm
Length chip flute LCF/l2 1.5748 inch 40 mm
Mounting spigot diameter DCONMS/d2 0.3504 inch 8.9 mm
Shank length LS/l4 1.7323 inch 44 mm
Usable length LU/l3 1.0512 inch 26.7 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
