CERATIZIT WT.15,25.R.3D.DIN1897 VAP HSSE TWIST DRILL 1010915250 (0652358)


Price:
Sale price$128.15
Stock:
Not in stock - Available to order

Description

WT.15,25.R.3D.DIN1897 VAP HSSE TWIST DRILL

Mat No: 1010915250, Article No: 1010915250

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT WT.15,25.R.3D.DIN1897 VAP HSSE TWIST DRILL 1010915250 (0652358)
EDP # 0652358
Workpiece Material(s) All Materials (White)
Weight 4.9 oz 137.7 g

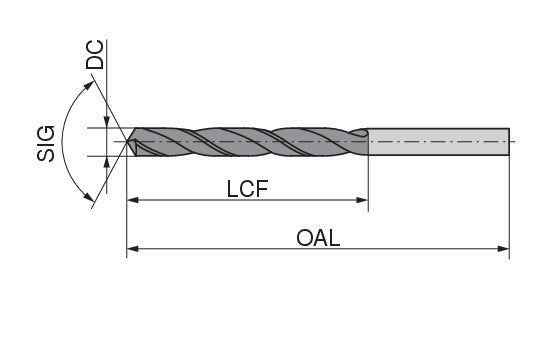

Cutting diameter DC/d1 h8 0.6004 inch 15.25 mm
Overall length OAL/l1 4.5276 inch 115 mm
Length chip flute LCF/l2 2.2835 inch 58 mm
Mounting spigot diameter DCONMS/d2 0.6004 inch 15.25 mm
Shank length LS/l4 2.2441 inch 57 mm
Usable length LU/l3 1.8012 inch 45.75 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
,
