CERATIZIT WT.18,00.R.3D.DIN1897 VAP HSSE TWIST DRILL 1010918000 (0652377)


Price:
Sale price$92.46
Stock:
Not in stock - Available to order

Description

WT.18,00.R.3D.DIN1897 VAP HSSE TWIST DRILL

Mat No: 1010918000, Article No: 1010918000

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT WT.18,00.R.3D.DIN1897 VAP HSSE TWIST DRILL 1010918000 (0652377)
EDP # 0652377
Workpiece Material(s) All Materials (White)
Weight 7.0 oz 197.1 g

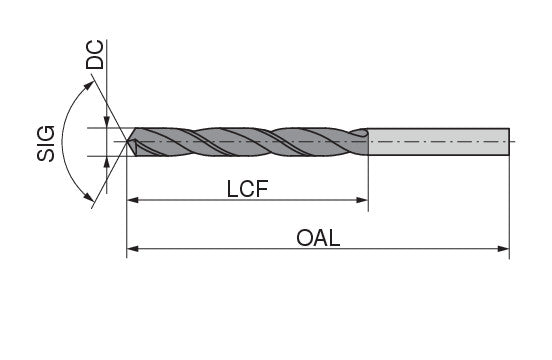

Cutting diameter DC/d1 h8 0.7087 inch 18 mm
Overall length OAL/l1 4.8425 inch 123 mm
Length chip flute LCF/l2 2.4409 inch 62 mm
Mounting spigot diameter DCONMS/d2 0.7087 inch 18 mm
Shank length LS/l4 2.4016 inch 61 mm
Usable length LU/l3 2.126 inch 54 mm

Application & Properties:

Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image
,
