Description
VX.12,80.R.3D.~DIN1897/1835A TIN HSSE TWIST DRILL Shank to DIN 1835 A Special point thinning Very good centering behaviour 4 facet Highest Performance
Mat No: 1012212800, Article No: 10122128
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

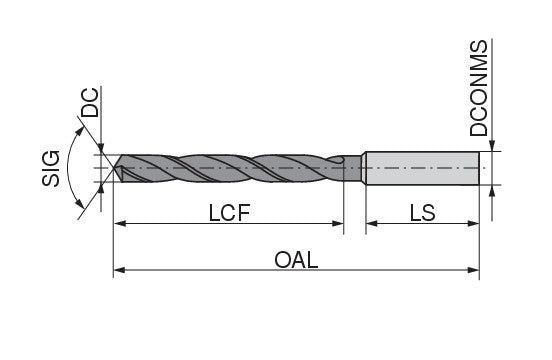

| Properties | ||
|---|---|---|
| Name | CERATIZIT VX.12,80.R.3D.~DIN1897/1835A TIN HSSE TWIST DRILL 1012212800 (0652378) | |
| EDP # | 0652378 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 4.3 oz | 122.9 g |
| Cutting diameter DC/d1 h8 | 0.5039 inch | 12.8 mm |
| Overall length OAL/l1 | 4.3701 inch | 111 mm |
| Length chip flute LCF/l2 | 2.0079 inch | 51 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.6299 inch | 16 mm |
| Shank length LS/l4 | 1.8898 inch | 48 mm |
| Usable length LU/l3 | 1.5118 inch | 38.4 mm |
Application & Properties:
Suitable Materials:
