VX.12,70.R.5D.~DIN338/1835A TIN HSSE TWIST DRILL With shank to DIN 1835 A Special point thinning 4 facet Highest Performance Very good centering behaviour
Mat No: 1012412700, Article No: 10124127
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Name||CERATIZIT VX.12,70.R.5D.~DIN338/1835A TIN HSSE TWIST DRILL 1012412700 (0652399)|
|Workpiece Material(s)||All Materials (White)|
|Weight||5.3 oz||150.9 g|

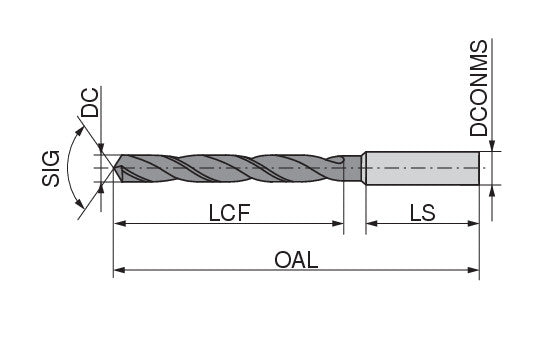

|Cutting diameter DC/d1 h8||0.5 inch||12.7 mm|
|Overall length OAL/l1||6.3386 inch||161 mm|
|Length chip flute LCF/l2||3.9764 inch||101 mm|
|Mounting spigot diameter DCONMS/d2 h6||0.6299 inch||16 mm|
|Shank length LS/l4||1.8898 inch||48 mm|
|Usable length LU/l3||2.5 inch||63.5 mm|
Application & Properties:
