Description
Ceratizit Article Number: 10124129
Ceratizit Material Number: 1012412900
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit VX.12.90.R.5D.~DIN338/1835A TIN High-performance Twist Drill Similar To 338, Short 10124129 | |
| EDP # | 0652401 | |
| Weight (1 pc.) | 5.0 oz | 154 g |

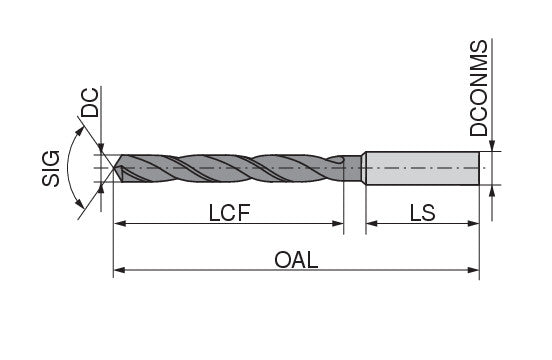

| Cutting diameter / DC h8 | 0.5079" | 12.900 mm |
| Overall length / OAL | 6.3386" | 161.000 mm |
| Length chip flute / LCF | 3.9764" | 101.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.6299" | 16.000 mm |
| Shank length / LS | 1.8898" | 48.000 mm |
| Usable length / LU | 2.5394" | 64.500 mm |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
| Flute count / NOF | 2 | |
| SIG / SIG | 118 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
