Description
Ceratizit Article Number: 10124107
Ceratizit Material Number: 1012410700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit VX.10,70.R.5D.~DIN338/1835A TIN High-performance Twist Drill Similar To 338, Short 10124107 | |
| EDP # | 0652409 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 3.0 oz | 94.0 g |

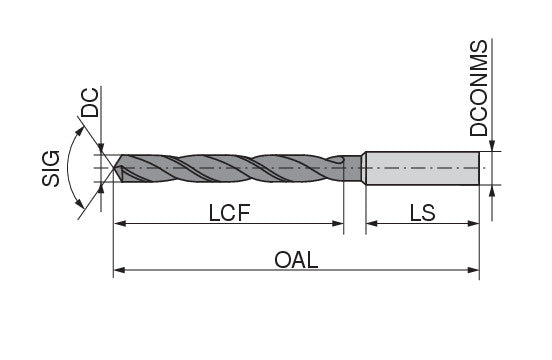

| Cutting diameter / DC h8 | 0.4213" | 10.700 mm |
| Overall length / OAL | 5.9449" | 151.000 mm |
| Length chip flute / LCF | 3.7008" | 94.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.4724" | 12.000 mm |
| Shank length / LS | 1.7717" | 45.000 mm |
| Usable length / LU | 2.1063" | 53.500 mm |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
| Flute count / NOF | 2 | |
| SIG / SIG | 118 ° | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
