Ceratizit VX.12,10.R.3D.~DIN1897/1835A TIN High-performance Twist Drills Similar To 1897, Extra-short 10122121 (0652657)


Price:
Sale price$52.85
Stock:
Not in stock - Available to order

Description

Ceratizit Article Number: 10122121

Ceratizit Material Number: 1012212100

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit VX.12,10.R.3D.~DIN1897/1835A TIN High-performance Twist Drills Similar To 1897, Extra-short 10122121
EDP # 0652657
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White)
Weight (1 pc.) 4.0 oz 118 g

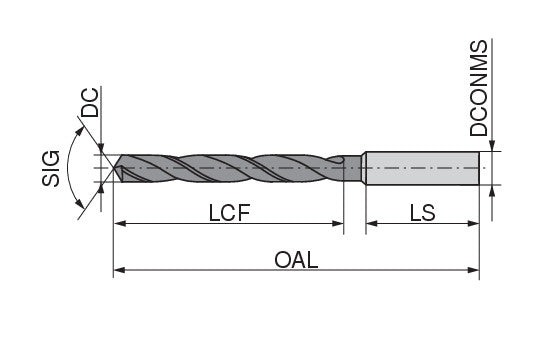

Cutting diameter / DC h8 0.4764" 12.100 mm
Overall length / OAL 4.3701" 111.000 mm
Length chip flute / LCF 2.0079" 51.000 mm
Mounting spigot diameter / DCONMS h6 0.6299" 16.000 mm
Shank length / LS 1.8898" 48.000 mm
Usable length / LU 1.4291" 36.300 mm
Coating name / Grade (Ceratizit) / COATN TiN
Flute count / NOF 2
SIG / SIG 118 °


Suitable Materials:

Property imageProperty imageProperty imageProperty imageProperty imageProperty image

Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
