Description
Ceratizit Article Number: 7103534014
Ceratizit Material Number: 12420000
Ceratizit Komet Number (Unpacked): 12420 000
Ceratizit Komet Number (Packed): 12420000
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

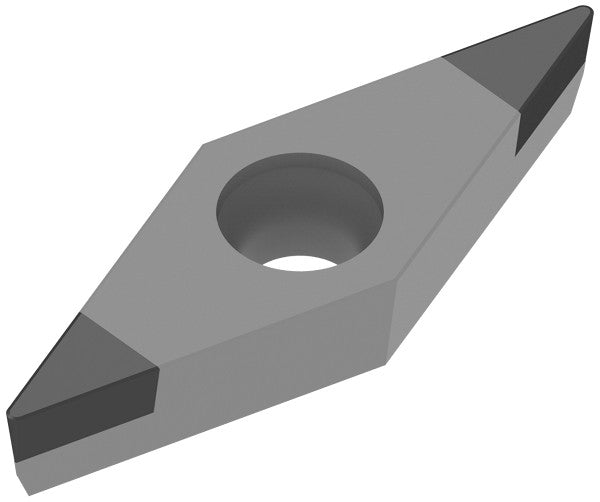

| Name | Ceratizit VCGW 160408SN-011C_B3 CTBH15C 7103534014 | |
| EDP # | 0652743 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 0.4 oz | 10.0 g |
| designation | 160408SN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.6535" | 16.600 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| support chamfer angle / GB | 15 ° | |
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.0984" | 2.500 mm |
| Face land width / BN | 0.0043" | 0.110 mm |
| Insert index count / NOI | 2 | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTBH15C | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
