Description
Ceratizit Article Number: 1015200350
Ceratizit Material Number: 1015200350
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit N.0,35.R.5D.DIN338 CoreLine - Twist Drills | |
| EDP # | 0653276 | |
| Weight (1 pc.) | 0.01 oz | 0.2 g |
| Machining process - Main Application | miniature holes | |

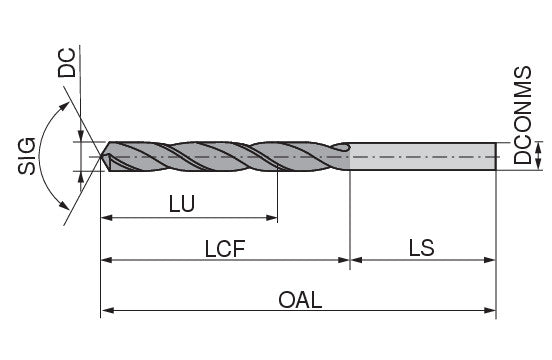

| Cutting diameter / DC h8 | 0.0138" | 0.350 mm |
| Overall length / OAL | 0.7480" | 19.000 mm |
| Length chip flute / LCF | 0.1575" | 4.000 mm |
| Mounting spigot diameter / DCONMS | 0.0138" | 0.350 mm |
| Shank length / LS | 0.5906" | 15.000 mm |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
| Usable length / LU | 0.0689" | 1.750 mm |
| SIG / SIG | 118 ° | |
| Cutting diameter - tolerance | h8 | |
| Info | 5xD | |
| Flute count / NOF | 2.0000" | 50.800 mm |
| Internal Coolant | NO | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
