N.38,00.R.10D.DIN341.MK4 VAP HSS TWIST DRILL
Mat No: 1029538000, Article No: 10295380
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

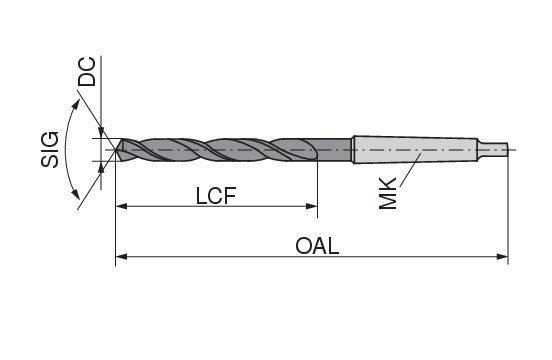

| Properties | ||
|---|---|---|
| Name | CERATIZIT N.38,00.R.10D.DIN341.MK4 VAP HSS TWIST DRILL 1029538000 (0653944) | |
| EDP # | 0653944 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 72.8 oz | 2063.0 g |
| Cutting diameter DC/d1 h8 | 1.4961 inch | 38 mm |
| Overall length OAL/l1 | 16.7717 inch | 426 mm |
| Length chip flute LCF/l2 | 10.9055 inch | 277 mm |
| Morse taper adapter size MK | 4 | |
Application & Properties:
Suitable Materials:
