CERATIZIT WTX-AL.6,90.R.8D.IK.HA DLC SOLID CARBIDE TWIST DRILL W1208069320 (0655304)


Price:
Sale price$214.71
Stock:
Not in stock - Available to order

Description

WTX-AL.6,90.R.8D.IK.HA DLC SOLID CARBIDE TWIST DRILL Aluminium Drills

Mat No: W1208069320, Article No: 1079206900

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT WTX-AL.6,90.R.8D.IK.HA DLC SOLID CARBIDE TWIST DRILL W1208069320 (0655304)
EDP # 0655304
Weight 1.6 oz 45.1 g

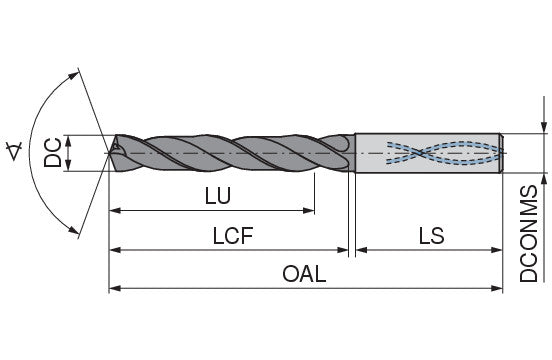

Cutting diameter DC h7 0.2717 inch 6.9 mm
Overall length OAL 4.4882 inch 114 mm
Length chip flute LCF 2.9921 inch 76 mm
Mounting spigot diameter DCONMS h6 0.315 inch 8 mm
Shank length LS 1.4173 inch 36 mm
Usable length LU 2.5197 inch 64 mm
Designation WTX-AL.6.90.R.8D.IK.HA DLC
Flute count NOF 2
,
