WTX-AL.15,00.R.8D.IK.HA DLC SOLID CARBIDE TWIST DRILL Aluminium Drills
Mat No: W1208150320, Article No: 1079215000
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
|Name||CERATIZIT WTX-AL.15,00.R.8D.IK.HA DLC SOLID CARBIDE TWIST DRILL W1208150320 (0655360)|
|Workpiece Material(s)||All Materials (White)|
|Weight||11.9 oz||337.8 g|

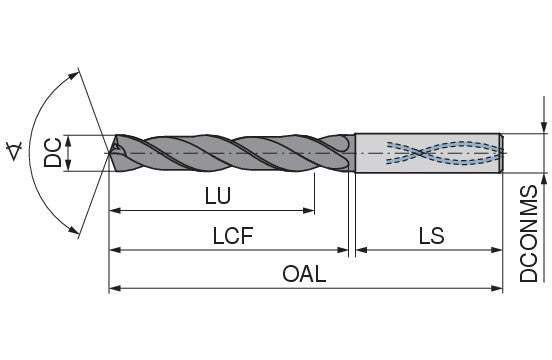

|Cutting diameter DC/d1 h7||0.5906 inch||15 mm|
|Overall length OAL/l1||7.9921 inch||203 mm|
|Length chip flute LCF/l2||5.9843 inch||152 mm|
|Mounting spigot diameter DCONMS/d2 h6||0.6299 inch||16 mm|
|Shank length LS/l4||1.8898 inch||48 mm|
|Usable length LU/l3||5.0394 inch||128 mm|
Application & Properties:
