CERATIZIT WTX-AL.15,20.R.8D.IK.HA DLC SOLID CARBIDE TWIST DRILL W1208152320 (0655361)


Price:
Sale price$632.53
Stock:
Not in stock - Available to order

Description

WTX-AL.15,20.R.8D.IK.HA DLC SOLID CARBIDE TWIST DRILL Aluminium Drills

Mat No: W1208152320, Article No: 1079215200

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT WTX-AL.15,20.R.8D.IK.HA DLC SOLID CARBIDE TWIST DRILL W1208152320 (0655361)
EDP # 0655361
Weight 0.0 oz 0.0 g

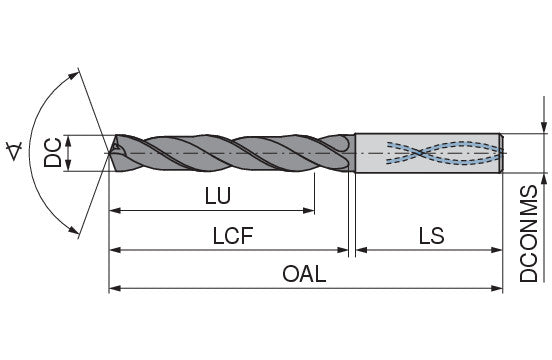

Cutting diameter DC h7 0.5984 inch 15.2 mm
Overall length OAL 7.9921 inch 203 mm
Length chip flute LCF 5.9843 inch 152 mm
Mounting spigot diameter DCONMS h6 0.6299 inch 16 mm
Shank length LS 1.8898 inch 48 mm
Usable length LU 5.0394 inch 128 mm
Designation WTX-AL.15.20.R.8D.IK.HA DLC
Flute count NOF 2
,
