CERATIZIT WTX-AL.16,50.R.8D.IK.HA DLC SOLID CARBIDE TWIST DRILL W1208165320 (0655366)


Price:
Sale price$775.58
Stock:
Not in stock - Available to order

Description

WTX-AL.16,50.R.8D.IK.HA DLC SOLID CARBIDE TWIST DRILL Aluminium Drills

Mat No: W1208165320, Article No: 1079216500

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT WTX-AL.16,50.R.8D.IK.HA DLC SOLID CARBIDE TWIST DRILL W1208165320 (0655366)
EDP # 0655366
Weight 15.9 oz 450.0 g

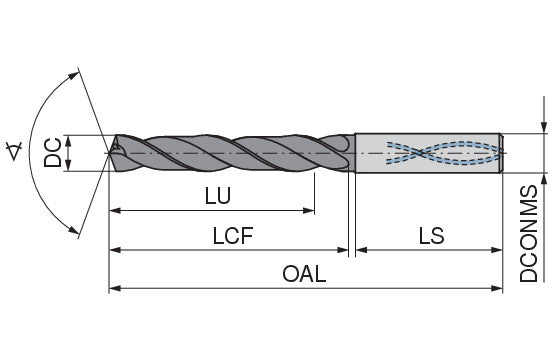

Cutting diameter DC h7 0.6496 inch 16.5 mm
Overall length OAL 8.7402 inch 222 mm
Length chip flute LCF 6.7323 inch 171 mm
Mounting spigot diameter DCONMS h6 0.7087 inch 18 mm
Shank length LS 1.8898 inch 48 mm
Usable length LU 5.6693 inch 144 mm
Designation WTX-AL.16.50.R.8D.IK.HA DLC
Flute count NOF 2
,
