Ceratizit CavTap ST.M6.ISO3-6G.DIN371-C CoreLine Blind Hole Machine Taps 22134060 (0655392)
Ceratizit CavTap ST.M6.ISO3-6G.DIN371-C CoreLine Blind Hole Machine Taps 22134060 (0655392)
Couldn't load pickup availability
Ceratizit Article Number: 22134060
Ceratizit Material Number: 2213406000
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

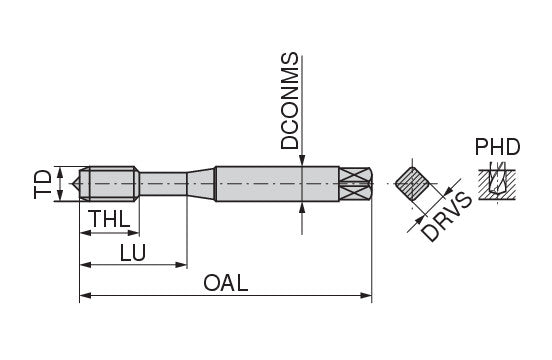

| Properties | ||
|---|---|---|
| Name | Ceratizit CavTap ST.M6.ISO3-6G.DIN371-C CoreLine Blind Hole Machine Taps 22134060 | |
| EDP # | 0655392 | |
| Weight (1 pc.) | 1.0 oz | 16.4 g |
| Thread diameter range / TD | m6 | |
| Overall length / OAL | 3.1496" | 80.000 mm |
| Mounting spigot diameter / DCONMS | 0.2362" | 6.000 mm |
| Drive size / DRVS | 0.1929" | 4.900 mm |
| Premachined hole diameter / PHD | 0.1969" | 5.000 mm |
| Thread cutting part length / THL | 0.3937" | 10.000 mm |
| Usable length / LU | 1.1811" | 30.000 mm |
| Thread pitch / TP | 0.0394" | 1.000 mm |
| Flutes | 3.0000" | 76.200 mm |
| Thread diameter / TD | 0.2362" | 6.000 mm |
| Thread form type / THFT | M | |
| Standard designation | DIN 371 | |
| Thread tolerance class / TCTR | ISO 3 6G | |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
Tool Form:
'T' form tools are threading taps, with fixed pitch and nominal diameter equal to the final thread nominal diameter.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
