Description
Note that this item has been discontinued and will not be re-stocked.
SALOREX UNI NCW-PM.M16.ISO2-6H.-C TIN HSS-PM MACHINE TAP SL NCW = with Weldon flat for synchronised CNC machining without length compensation chuck
Mat No: 2214916000, Article No: 22149160
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

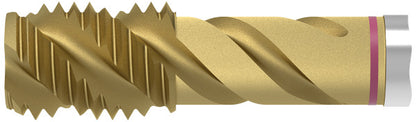

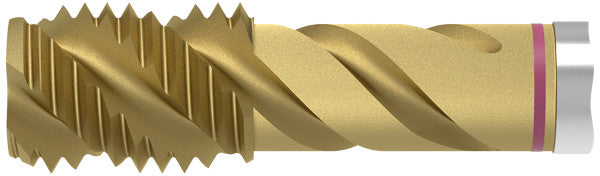

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

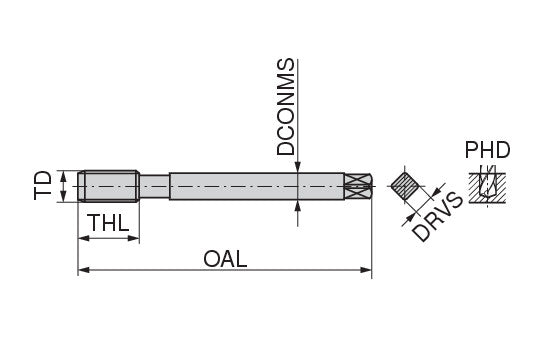

| Properties | ||
|---|---|---|
| Name | CERATIZIT SALOREX UNI NCW-PM.M16.ISO2-6H.-C TIN HSS-PM MACHINE TAP SL 2214916000 (0655401) | |
| EDP # | 0655401 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 3.4 oz | 95.6 g |
| Thread tolerance class TCTR | ISO 2 6H | |
| Thread diameter range TD/d1 | M16 mm | |
| Thread pitch TP/p | 0.0787 inch | 2 mm |
| Overall length OAL/l1 | 4.3307 inch | 110 mm |
| Mounting spigot diameter DCONMS/d2 | 0.4724 inch | 12 mm |
| Drive size DRVS/a | 0.3543 inch | 9 mm |
| Premachined hole diameter PHD/d0 | 0.5512 inch | 14 mm |
| Thread cutting part length THL/l2 | 0.8661 inch | 22 mm |
| Flutes | 3 | |
Application & Properties:
Suitable Materials:
